HomeTank
Water, on autopilot.

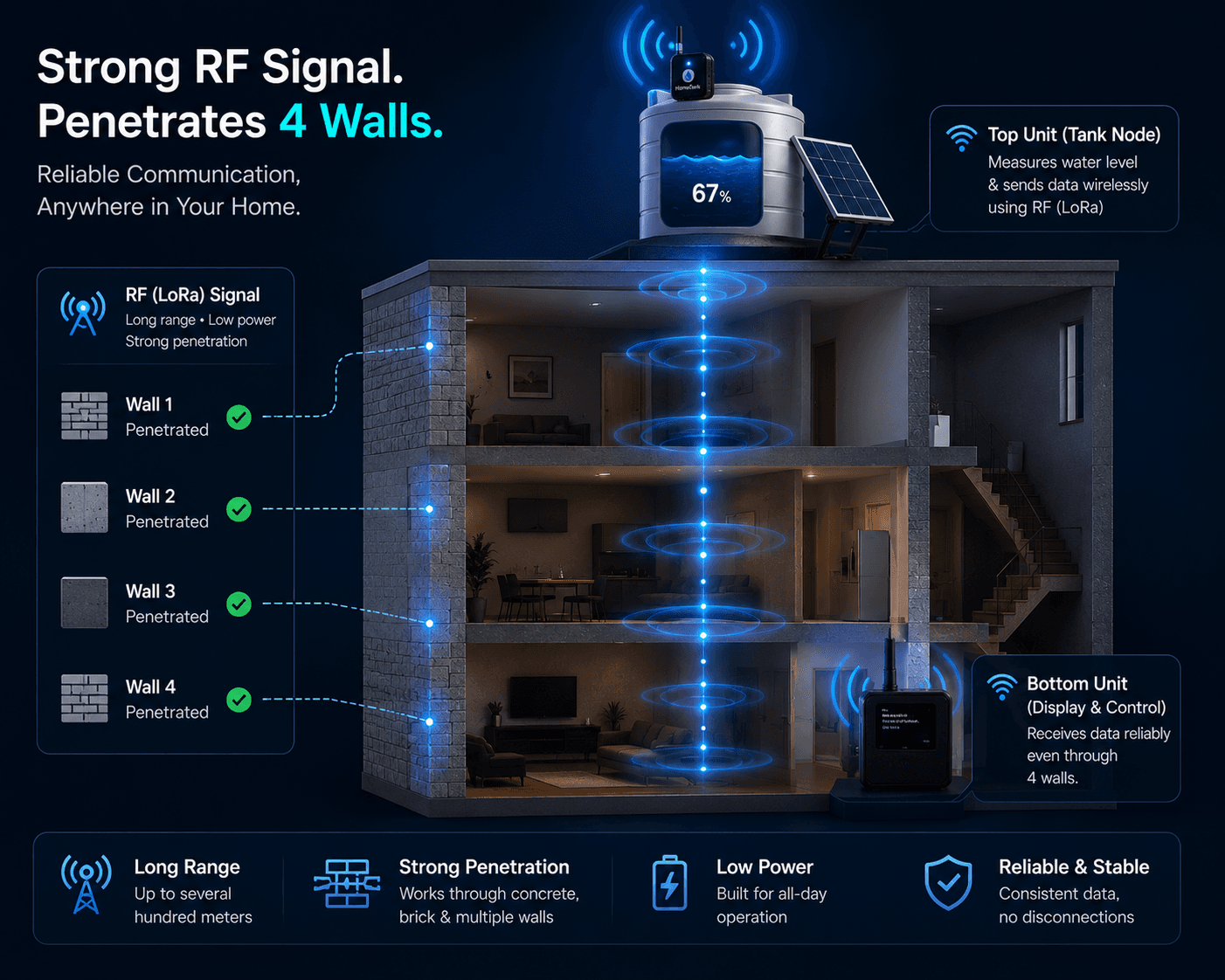

A wireless LoRa tank monitor and pump controller. Through four floors of concrete. No Wi-Fi. No wiring. No thinking about it.
HomeTank Features
Water Management Made Smarter
1. Multi-Tank & Capacity Setup
Easily select your water tank capacity (from 500L up to 10,000L+) right from the mobile interface. Tailor monitoring thresholds specifically to your home's daily usage patterns.
2. Smart Schedule Automation
Never worry about overflows or dry runs again. Set automated ON/OFF pump schedules based on municipal water supply timings or custom intervals that fit your lifestyle.

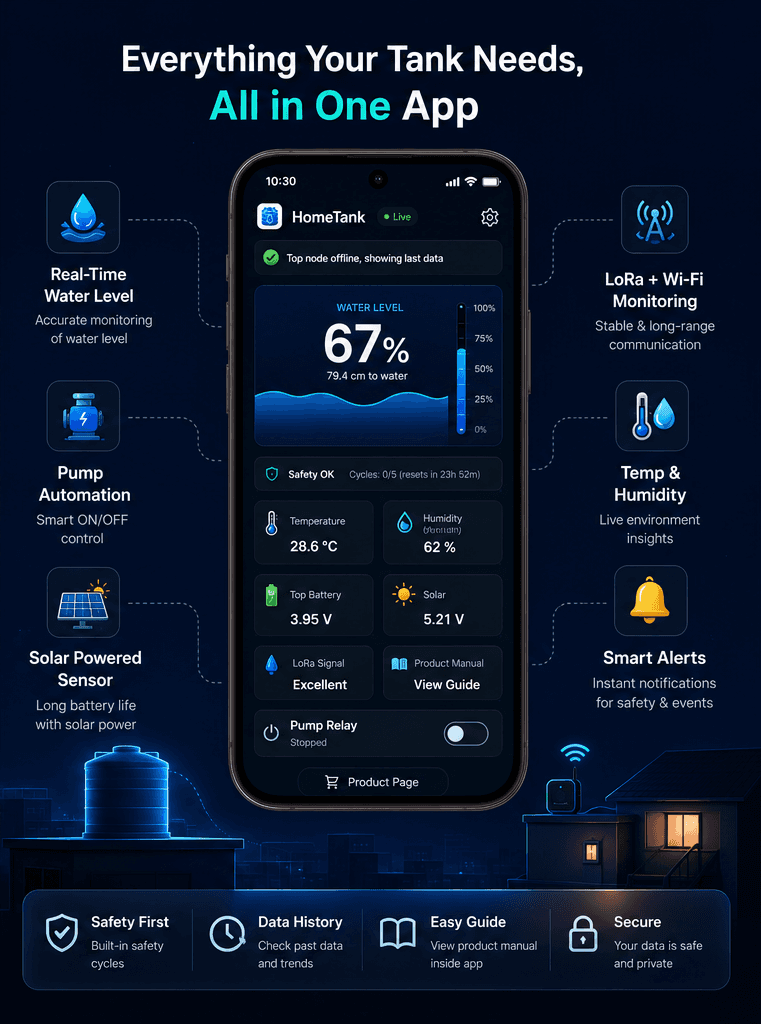

3. Live Level & Flow Monitoring
Get real-time updates on exact water volume, battery health of the solar sensor, and instant flow rate alerts right on your dashboard wherever you are.
4. Long-Range LoRa Wireless Unit
Our industrial-grade wireless transmitter communicates up to 1+ km through concrete walls without requiring Wi-Fi on your roof, completely powered by clean solar energy.

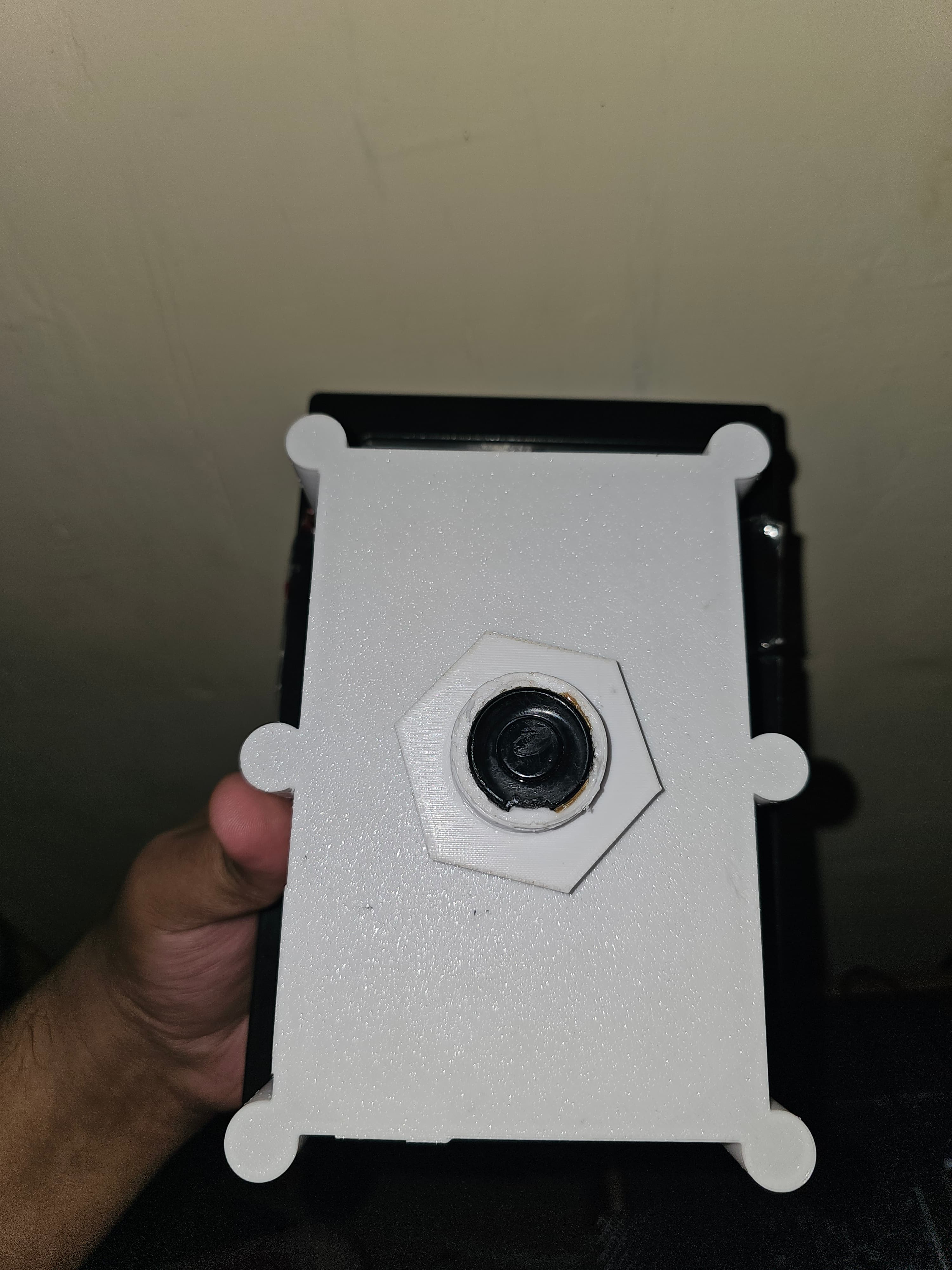

5. Non-Contact Ultrasonic Precision
Zero moving parts in the water. Advanced ultrasonic sound waves measure water depth down to the millimeter with exceptional reliability and zero maintenance.
6. System Architecture Overview
Comprehensive breakdown of how our Heltec ESP32-S3 LoRa telemetry communicates directly between the top roof lid unit and the ground motor relay.

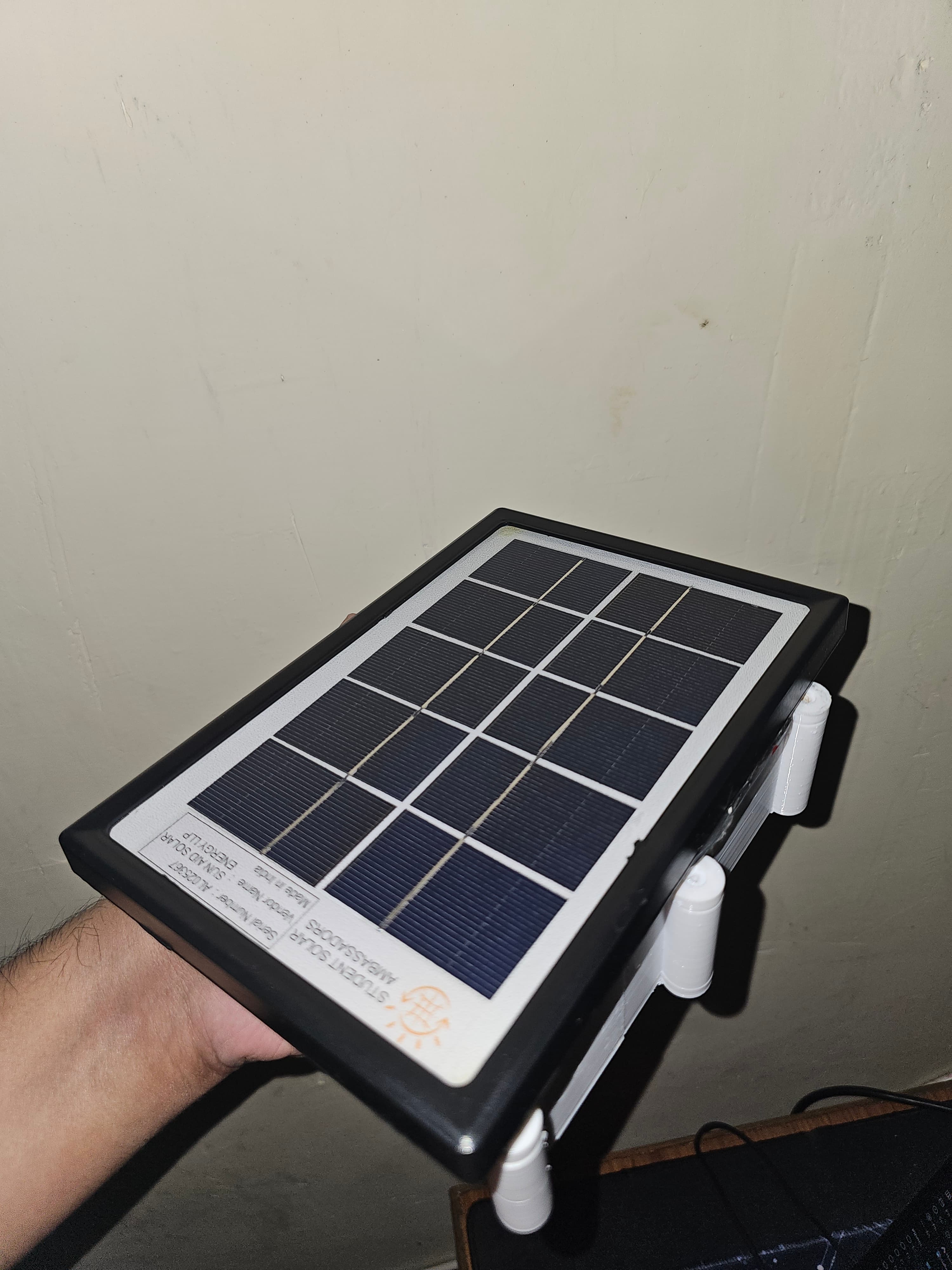

7. Rugged Solar Lid Verification
Self-sustaining top lid unit inspected and verified in real-world outdoor conditions. IP65 weatherproofing designed for extreme sun, heat, and heavy monsoon rains.
8. Concrete & Syntax Tank Mounting
Easily installs onto standard concrete slabs or plastic overhead syntax tanks with secure external bolts—requiring zero drilling into internal water layers.

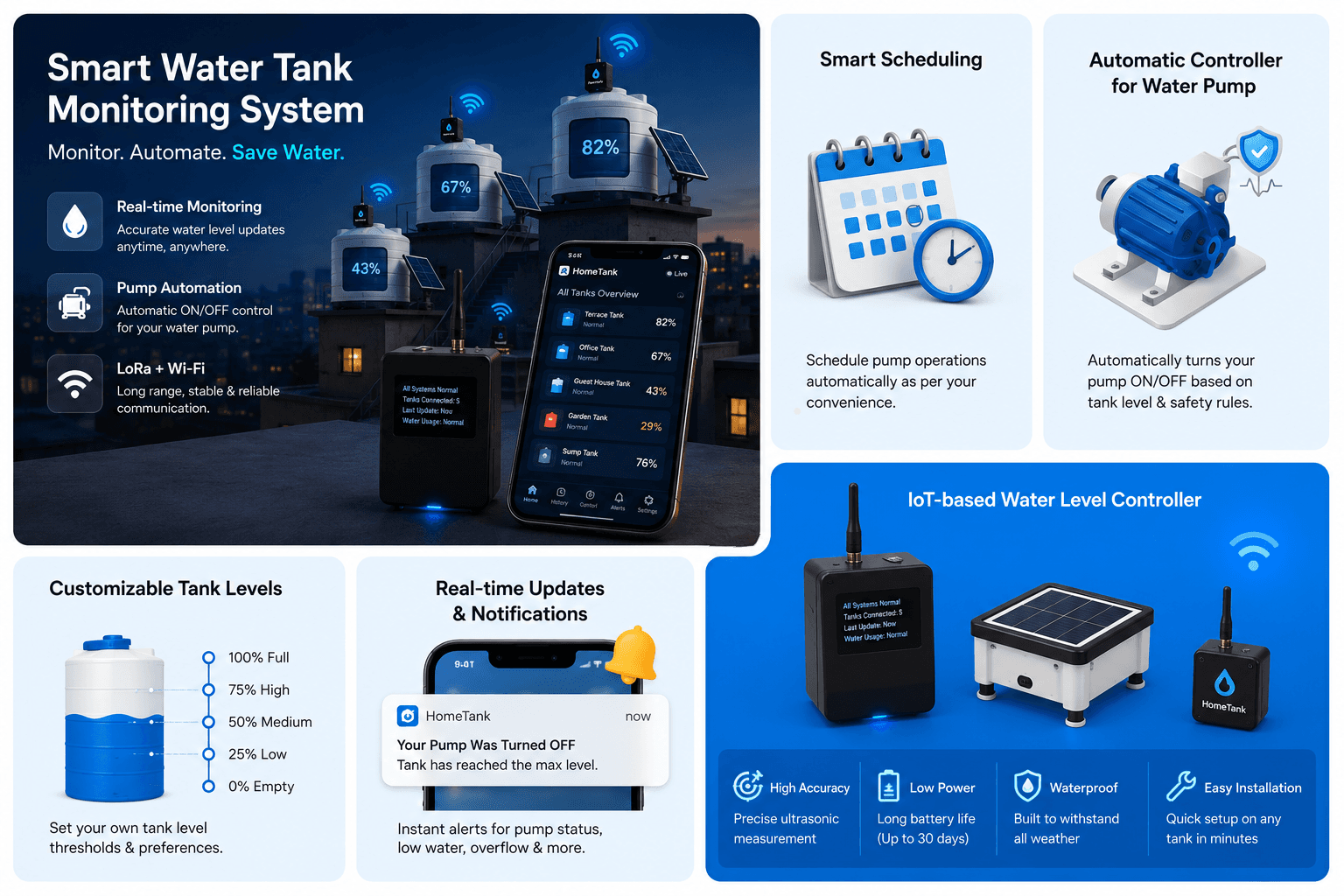

Real-time Updates & Complete Ecosystem
Explore our full multi-tank architecture, automatic scheduling, pump automation, and LoRa wireless telemetry in one big master view.
Autonomous Smart Tank System.
Set & Forget Automation.
Watch how our wireless top sensor autonomously monitors water levels, automatically triggers your ground pump at 20%, and stops safely at 90% full—requiring zero manual input once running.
Simple, Transparent Packages. Zero Subscriptions.
Every hardware kit includes our pre-flashed Heltec LoRa nodes, IP65 ultrasonic sensor, and high-load ground pump relay controller.
Select Your Currency & Hardware Add-Ons
Add-ons apply dynamically across any selected package below.
+ Extra Tank Top Unit (Sensor + Solar Lid)
Additional autonomous solar node & sensor for a 2nd roof/ground tank.
Residential HomeTank Kit
Ideal for independent villas, duplex homes, and single-tank residential setups.
- 1x Top Solar Transceiver Node (Heltec V3 + CN3065 + Solar Panel)
- 1x Weatherproof IP65 Ultrasonic Sensor (JSN-SR04T + 3.33V Divider)

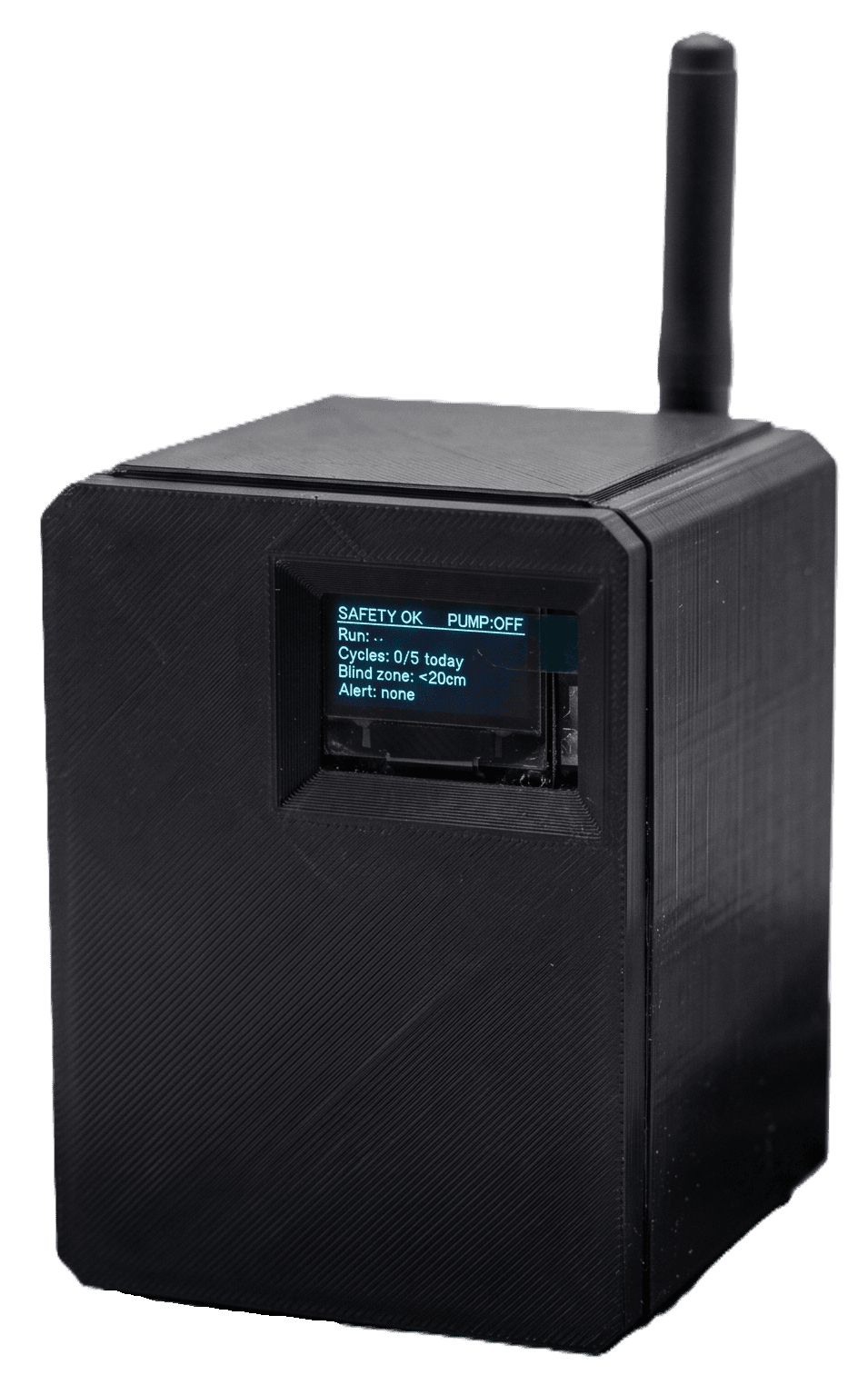

- 1x Ground Pump Controller Node with Digital OLED Display
- 30A High-Load Motor Relay (Supports up to 2.5 HP single-phase)
- Free Android / iOS BLE Mobile App with instant alerts
- 30-Minute Dry-Run Safety Interlock Watchdog
- Easy Installation: Any local plumber (make hole & screw in top piece) or Urban Company
Agricultural Pro Kit
Long-Range Farm ProDesigned for multi-acre farms, distant borewell reservoirs, and orchard irrigation.
- Everything in Residential Kit, PLUS:
- Upgraded High-Gain 8dBi Fiberglass Antenna (3–5 km range across orchards)
- Rugged IP67 Heavy-Duty Polycarbonate Weather Enclosure
- 3200 mAh Extended Battery Pack for 10-day zero-sunlight endurance
- Dual-Relay Support for main borewell + overhead holding tank
- Direct SMS/WhatsApp Emergency Low-Water Alerts (Optional GSM module)
Enterprise Multi-Tank System
Commercial GradeFor multi-story apartment towers, tech parks, hotels, and industrial plants.
- 4x Top Solar Nodes with isolated UNIT_IDs (#1001 to #1004)
- 1x Master Central Pump & PLC Controller Gateway
- Modbus / RS485 Industrial Bridge output for BMS integration
- Off-Peak Electricity Scheduling Rule Engine (Save 20-30% on tariffs)
- Priority On-Site Installation Support & Custom Calibration
- 5-Year Enterprise Hardware Maintenance Contract
Open source. Build your own.
Two Heltec WiFi LoRa 32 V3 nodes talk over LoRa. The Top Node measures level and temperature in the tank; the Bottom Node runs the pump and serves the companion app over Wi-Fi.
Tanay2920003/HomeTankAdd the board package
In Arduino IDE Preferences, add Heltec's board manager URL, then install “Heltec ESP32 Series Dev-boards”.
Install libraries
RadioLib, Heltec ESP32 Dev-Boards, DHT sensor library and ArduinoJson. Click Install All for dependencies.
Pair the nodes
Set the same UNIT_ID in both sketches. Unit 2 uses 1002, unit 3 uses 1003, up to 65535.
Required libraries
- Top + Bottom
RadioLib
SX1262 LoRa radio
- Top + Bottom
Heltec ESP32 Dev-Boards
OLED display driver
- Top
DHT sensor library
DHT22 temperature & humidity
- Bottom
ArduinoJson
JSON for the web PWA API
Multi-unit pairing
Both nodes of one tank must share the same ID, so neighbouring systems never cross-talk.
#define UNIT_ID 1001
Partner With Us or Acquire the Complete Project IP
Are you an OEM, IoT distributor, real estate developer, or looking to acquire the full HomeTank technology stack? We offer direct commercial partnerships, white-label manufacturing rights, or complete buyout of the hardware schematics, PCB designs, firmware, cloud infrastructure, and mobile app source code.

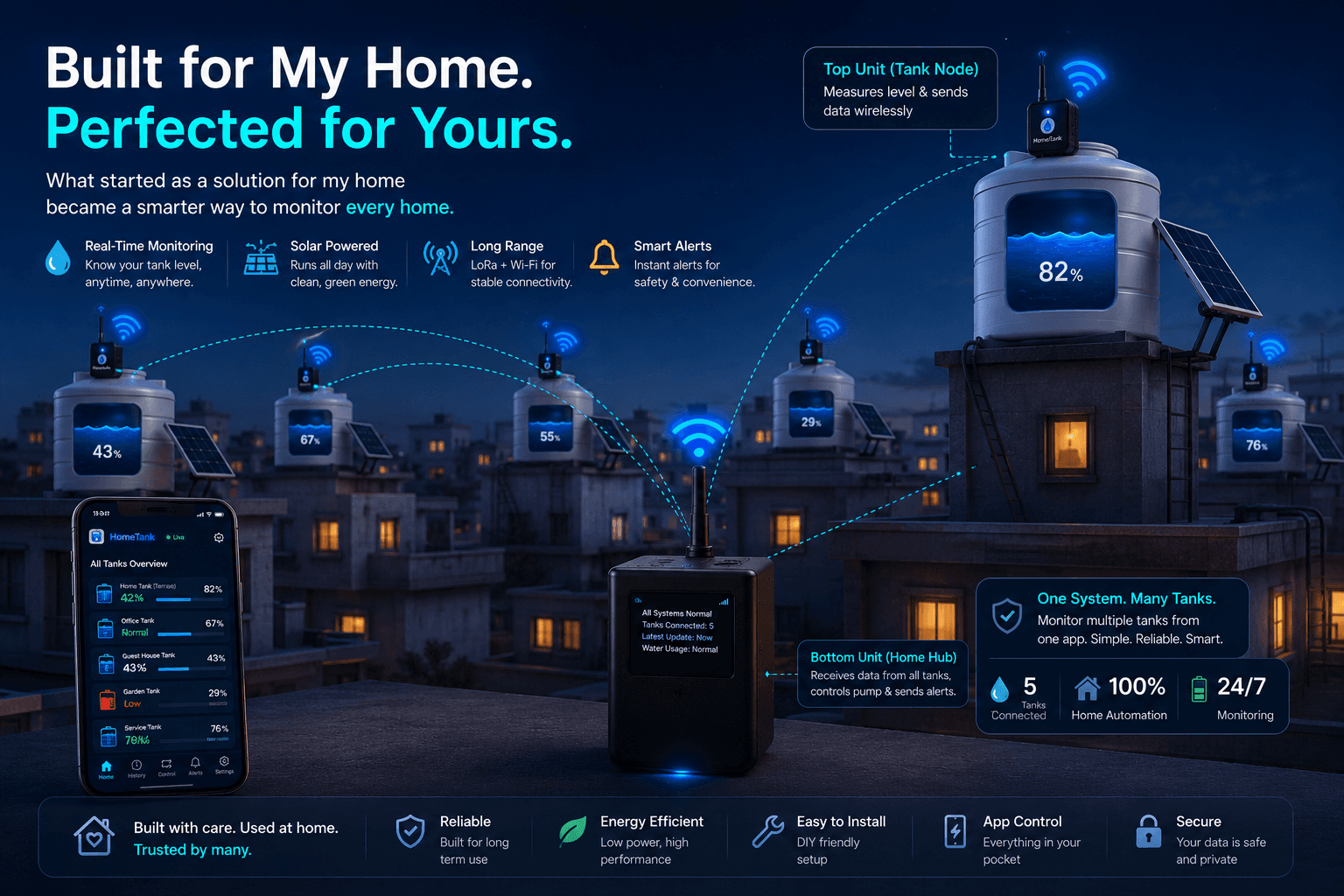

Built for My Home. Perfected for Yours.
Designed from real experience, not assumptions. Real problems. Real engineering. Real reliability. From one home to thousands across India.
Connect Direct With Project Maker
Reach out to Tanay Anand Mishra (Direct Lead Engineer & Creator) to discuss acquisition terms or distribution partnerships immediately.
End-to-End Telemetry Link
How HomeTank communicates from your rooftop terrace tank directly to your ground floor pump in < 1 second.
Wireless Level Sensor
Sits under tank lid • Solar / Battery
Automatic Motor Switch
Connects to your pump switchbox
